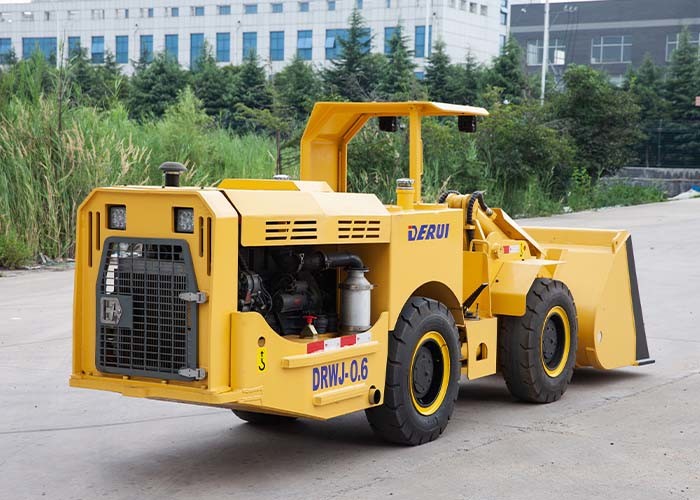

Optimize Your Mine S Performance With DRWJ-0.6 Underground LHD Machine

The DRWJ-0.6 is the smallest LHD in the DERUI portfolio and is designed for extremely narrow veins and narrow section. The machine is worldwide proven in hard rock mines as well as in tunneling operations. Despite the small dimensions, the DRWJ-0.6 provides an ergonomically designed cabin and a good visibility.
Its modern transmission and components result in a high reliability with simple maintenance and fully safe operation.
With a width of 1100 to 1160 m and a tramming capacity of 1.2 tons, the DRWJ-0.6 is ideal to raise your productivity without the need of increasing your gallery sections.
The DRWJ-0.6 fitted with a simple and robust cable reel designed for tramming and equipped with an automatic cable tension system, allows the utilization of the miniloader with less noise and low ventil.
The DRWJ-0.6 is full of features to help mines maximize improve productivity and minimize extraction costs. It has been engineered to optimize machine width, length and turning radius. DRWJ-0.6 can reduce cost per ton by up to 36% thanks to its reduced operating width and larger capacity compared to other loaders in the same size class.
With the safety design, we have moved the operator further away from falling rocks during bucket loading. Improved visibility and powerful LED lights help reduce collision risk while ground-level daily maintenance reduces risk of slips, trips and falls. Enhanced ergonomics in the operator compartment keeps the operator more comfortable during the shift, enabling to focus on product.

Ergonomic operator seat with seat belt

Simple single-pass loading improves productivity

Outstanding manoeuvrability is achieved by the excellent steering angle of the robust articulation joint which allows oscillation of the frame to balance undulating roadways. This layout results in optimum weight distribution on all four wheel and the rear frame is protected against torsional force.

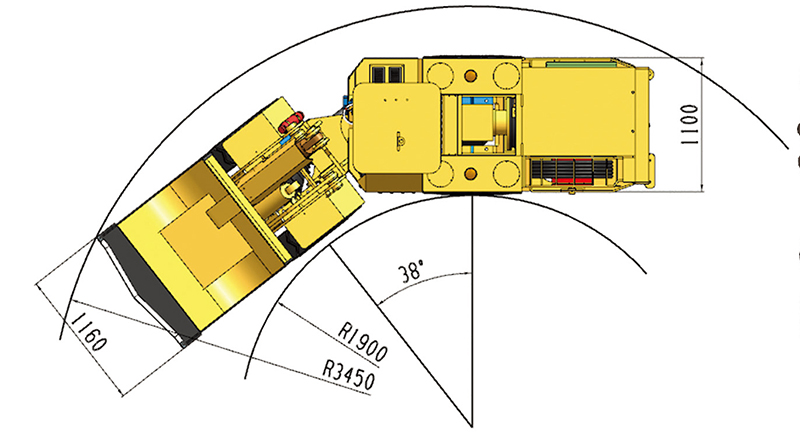

Small envelope size and turning radius enable easy navigation in narrow veins

Low operating weight reduces fuel consumption and extends tire life

Easy access to well-protected service points facilitates daily maintenance

All the service points are well protected but easy to access.

New strengthened cable with automatic tensioning cable reel is more wearable and extend service life.

The company covers an area of 35000 square meters; the building area is 20000 square meters, possessing key advanced machinery processing equipments and heat treatment, including processing center, numerical control machine, and plasma cutting machine. The company is composed of scientific research team by a group of experts and engineers who engaged in the R&D and production of underground mining equipments for a long time.

DERUI offers a range of underground equipments to meet your high production demands and lower your cost per ton. DERUI produces vehicles for use in tight spaces and low altitudes must be extremely compact in size and must have an optimal driving position. The arrangement allows the driver side of the vehicle good visibility when driving forward and backward. Environmentally compatible is necessary for all sorts of field operation, so we mount air or water cooled diesel engines fitted with catalytic converters. Equipments manufactured by DERUI are available with electric motors too.
Electrical driven equipments present the advantage of zero exhaust emission and consequently ideal for mining projects where fresh air is top priority.
